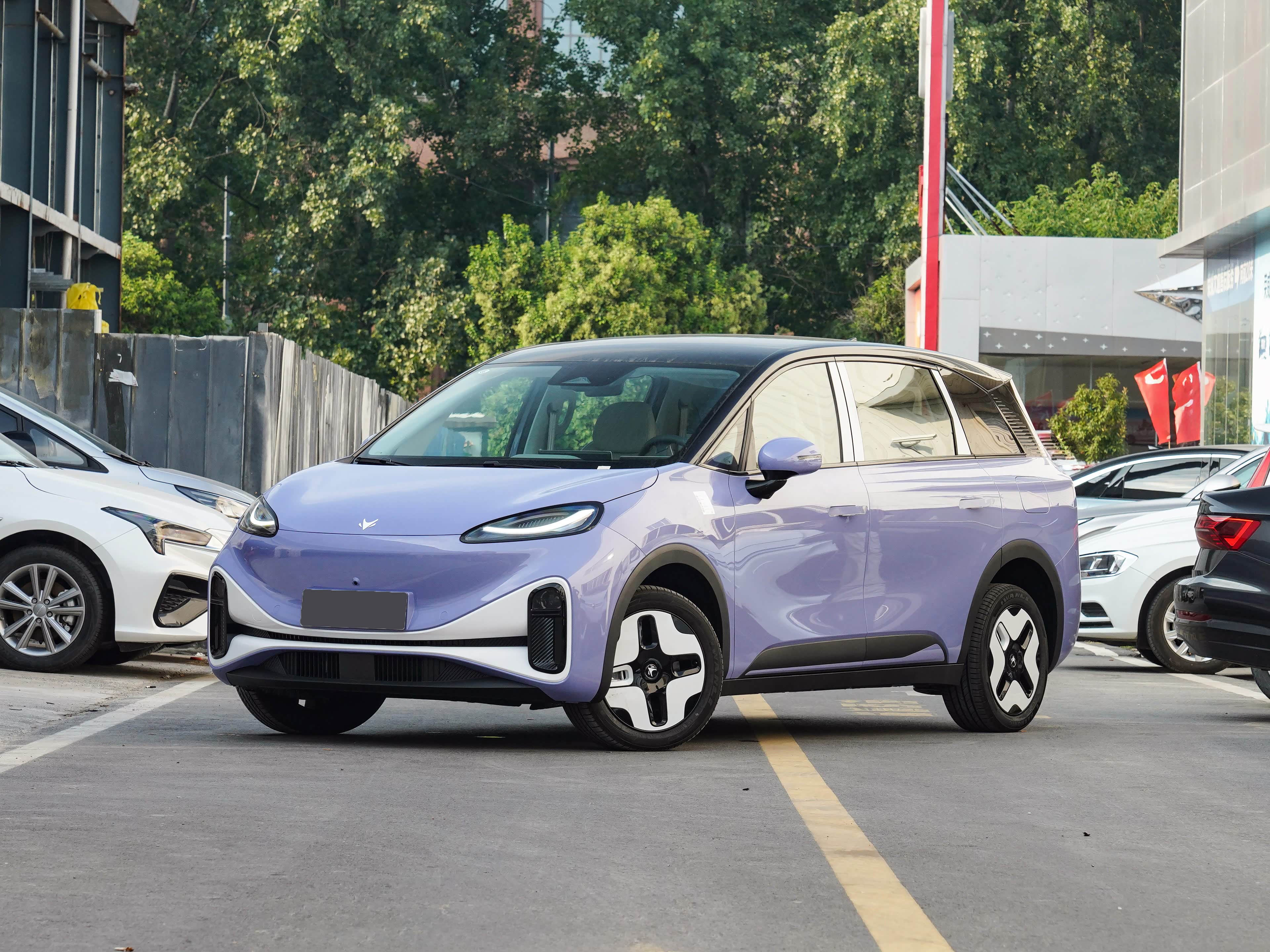

    Product Image Preview
    thumb 0
    thumb 1
    thumb 2
    thumb 3
    thumb 4
    thumb 5
    thumb 6
    thumb 7
    thumb 8
    thumb 9
    thumb 10
    thumb 11
    thumb 12
    thumb 13
    thumb 14
    thumb 15
    thumb 16
    thumb 17
    thumb 18
    thumb 19

    Brand Nationality

    China

    Class

    Compact MPV

    Energy Type

    Electric

    Max. power(kW)

    120

    Max. torque(N·m)

    240

    Displacement(L)

    0.0

    L*M*H(mm)

    4500*1870*1655

    ARCFOX

    2025 Parent-child Version Pro

    No price available

    Quoted price is the ex-factory list price for the vehicle only. Domestic logistics, customs clearance, packing, and port charges are not included.

    Currency conversion

    Featured brands

    Family Edition Pro

    Price No price available
    Year 2023
    Share
    Review
    4.5

    1 user reviews

    Key specifications

    150 of 162 specification fields recorded

    Key specs

    Standard Optional
    Item Value
    Brand Nationality China
    Year 2023
    Automobile Brand Arcfox Kaola(Koala)2023Parent-child Pro
    MSRP ¥169,800
    Class Compact MPV
    Energy Type Electric
    Max. power(kW) 120
    Max. torque(N·m) 240
    Electric(Ps) 163
    Transmission Single-speed
    Displacement(L) 0.0
    L*M*H(mm) 4500*1870*1655
    Body Type 5-door 4-seat MPV
    Max speed(km/h) 160
    Acceleration 0-100km/h (secs) -

    Basics specs

    Standard Optional
    Item Value
    Length(mm) 4500
    Width w/mirrors folded(mm) 1870
    Height(mm) 1655
    Wheelbase(mm) 2820
    Front track(mm) 1597
    Rear track(mm) 1600
    Min.ground clearance(mm) 145
    Curb weight(kg) 1800
    Body Type MPV
    Door Number 5
    Seating capacity 4

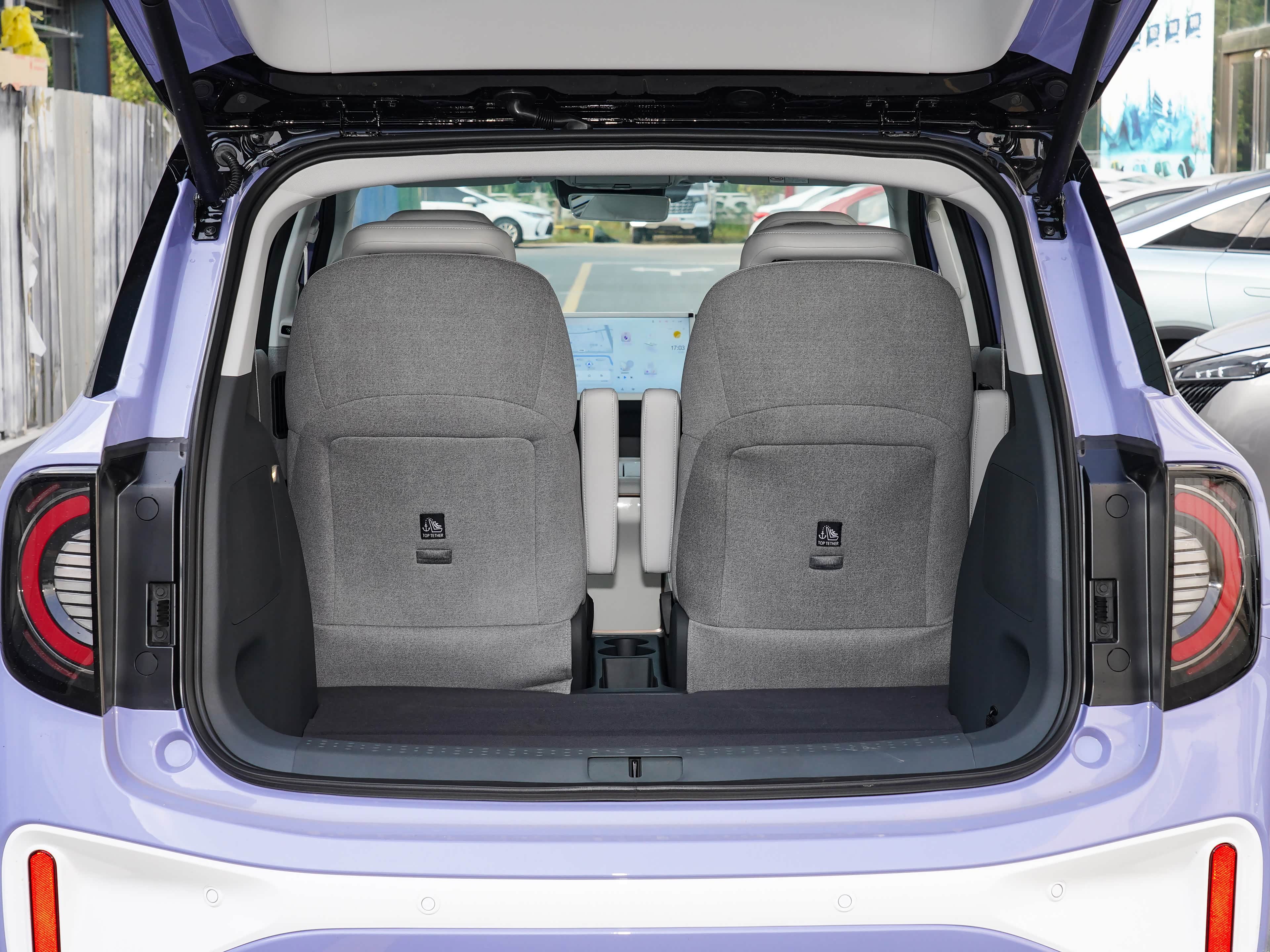

    Luggage compartment volume (L) 410
    Max.Cargo capacity(L) 410

    Engine

    Standard Optional
    Item Value
    Fuel Electric

    Electrical

    Standard Optional
    Item Value
    Electric motor type PMDC/synchronous
    Electric Total Power(kW) 120
    Motor Total Torque(N·m) 240
    Front Motor power(kW) 120
    Front Motor torque(N·m) 240
    Drive motor Single Motor
    Motor Type Front motor
    Battery Type LFP Battery
    Battery capacity(kWh) 58.8
    Power consumption per hundred kilometers (kWh/100km) 14.7
    DC Fast Charging Time 0.43
    AC Slow Charging Time 10.5
    DC Fast Charging (%) 30-80

    Transmission

    Standard Optional
    Item Value
    Abbreviations Single-speed
    Gear Number 1
    Transmission Fixed gear ratio transmission

    Steering

    Standard Optional
    Item Value
    Drivetrain Front-engine Front-drive
    Front axle MacPherson independent suspension
    Rear axle Torsion beam suspension
    Steering Electronic Power Steering
    Frame Type integral structure

    Brakes

    Standard Optional
    Item Value
    Front Brakes Ventilated discs
    Rear Brakes Disc
    Brake system Electric Parking Brake (EPB)

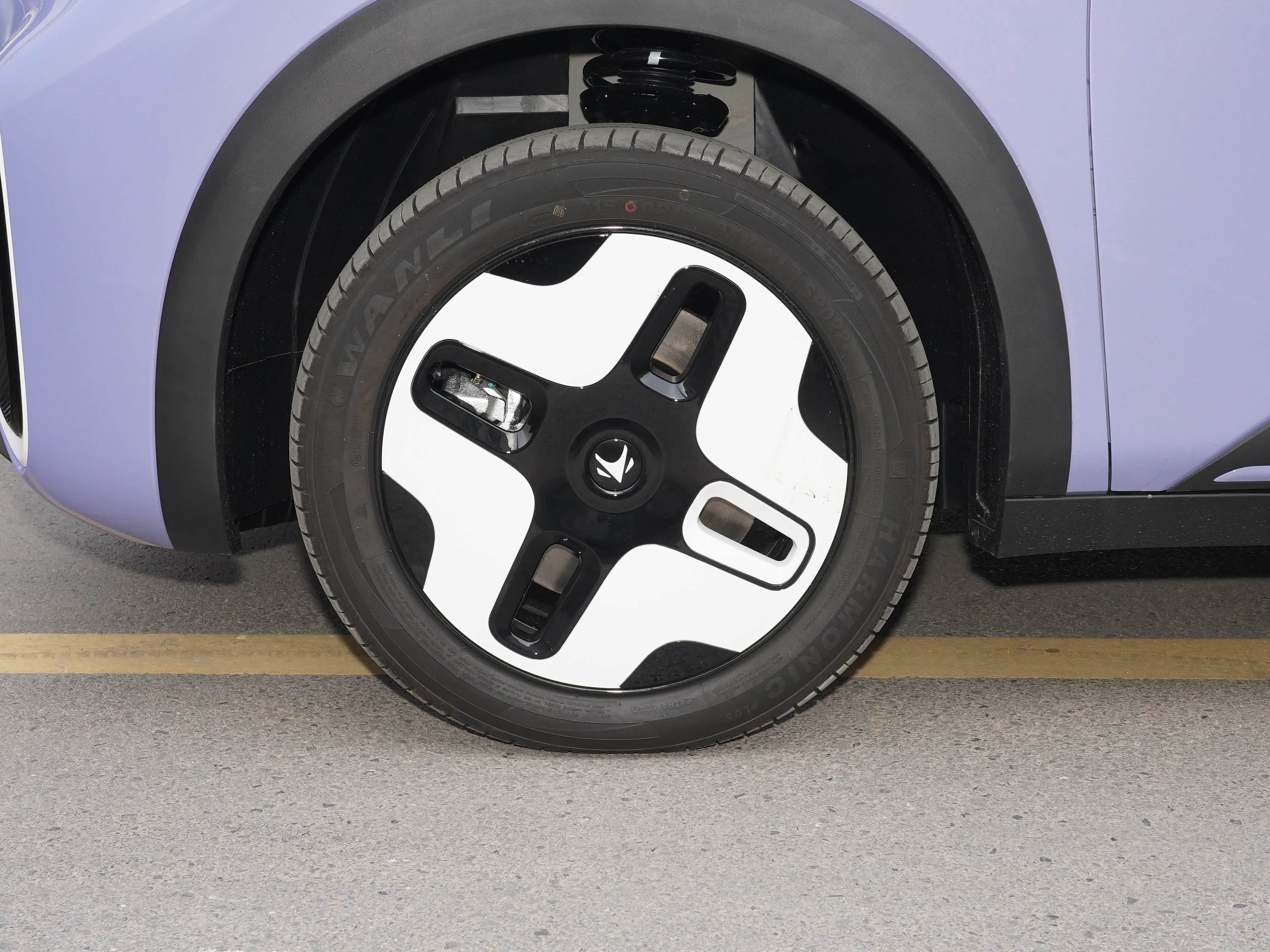

    Front Wheel 215/50 R17
    Rear Wheel 215/50 R17
    Spare wheel None

    Safety&Security

    Standard Optional
    Item Value
    airbags for driver and front passenger Driver● / Passenger●
    Front/Rear side airbags Front ●/Rear-
    Front/Rear Curtain airbags Front ●/Rear ●
    Knee airbags ● Driver driving Knee airbags
    Tire Pressure Monitoring System (TPMS) ● tire location alert
    Seatbelt alert ● Whole vehicle
    ISOFIX ●
    Anti-lock Braking System (ABS) ●
    Electronic Brake-force Distribution(EBD/CBC) ●
    Emergency Brake Assist(EBA/BAS/BA) ●
    Traction Control (ASR/TCS/TRC) ●
    Electronic stability program (ESC/ESP/DSC) ●
    Driver Condition Monitor -
    Traffic sign recognition ●

    Driver Assistance

    Standard Optional
    Item Value
    Hill Launch Assist ●
    AUTO HOLD ●
    Hill Descent Control (HDC) -
    Drive Modes ● Eco ● Normal/Comfort ● Individual/Personal
    Vehicle Side Warning System ●
    Cruise system ● Full-Speed Adaptive Cruise Control
    Front and Rear Parking Aid Front ●/Rear ●
    Driver Assistance System ●360degree panoramic image

    Exterior&Security

    Standard Optional
    Item Value
    Sunroof ● Fixed panoramic roof
    Wheel Material ● Alloy
    Sliding side doors ● Electric (RH)
    Powered tailgate ●
    Electric tailgate position memory ●
    Central locking System ●
    Key type ● Remote key ● Bluetooth key
    Push Button Start ●
    Keyless Entry ●
    Flush deployable door handles ●
    Pre-heating battery ●

    Interior&Trim

    Standard Optional
    Item Value

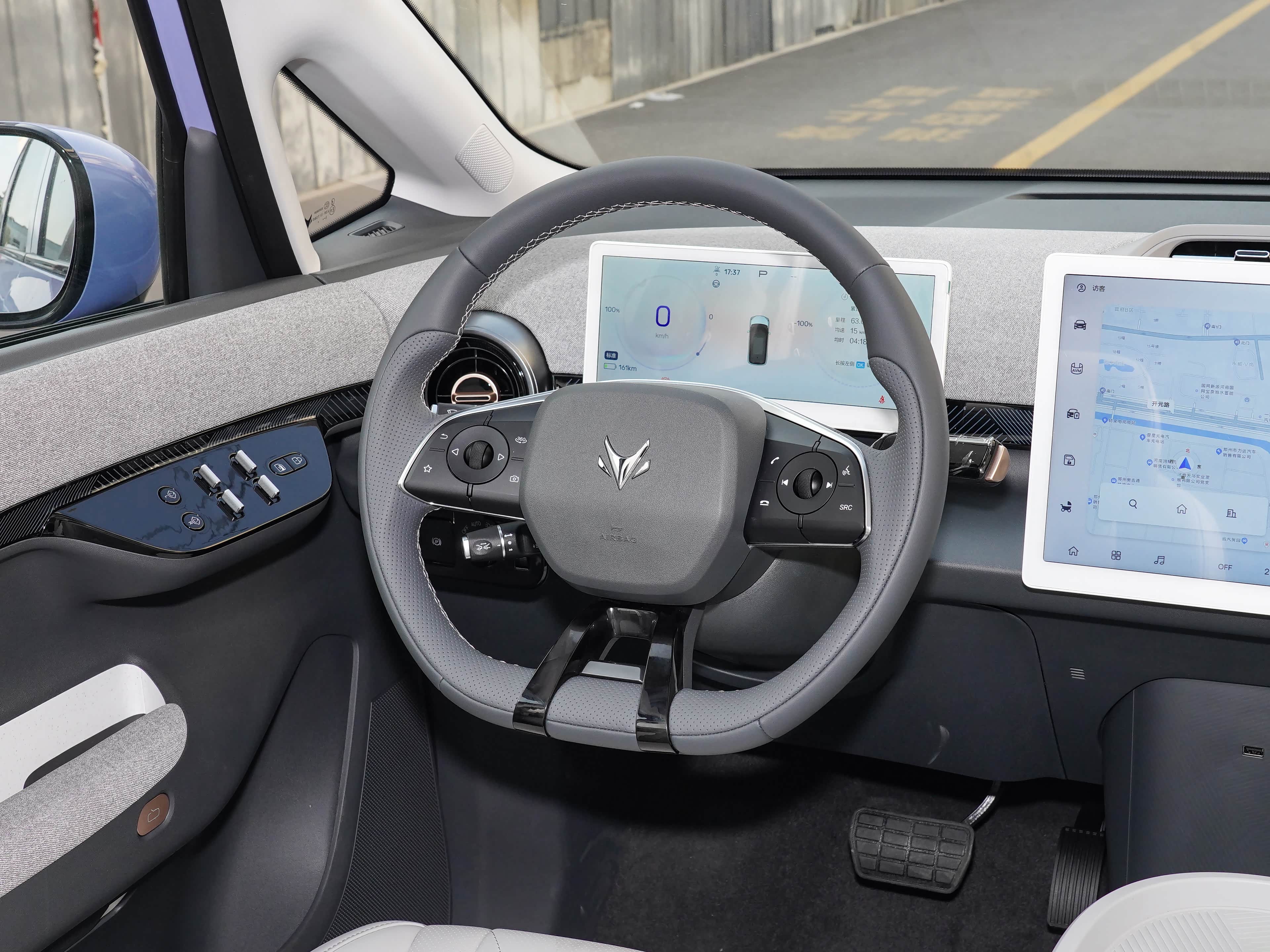

    Steering wheels ● Leather
    Steering column ● manual tilt
    Multi-function steering wheel ●
    Gearshift paddles -
    Heated steering wheel ●
    Steering wheel Memory -
    Multi-Information Display ● color
    Digital instrument cluster ●
    Instrument cluster size ●10.25Inch

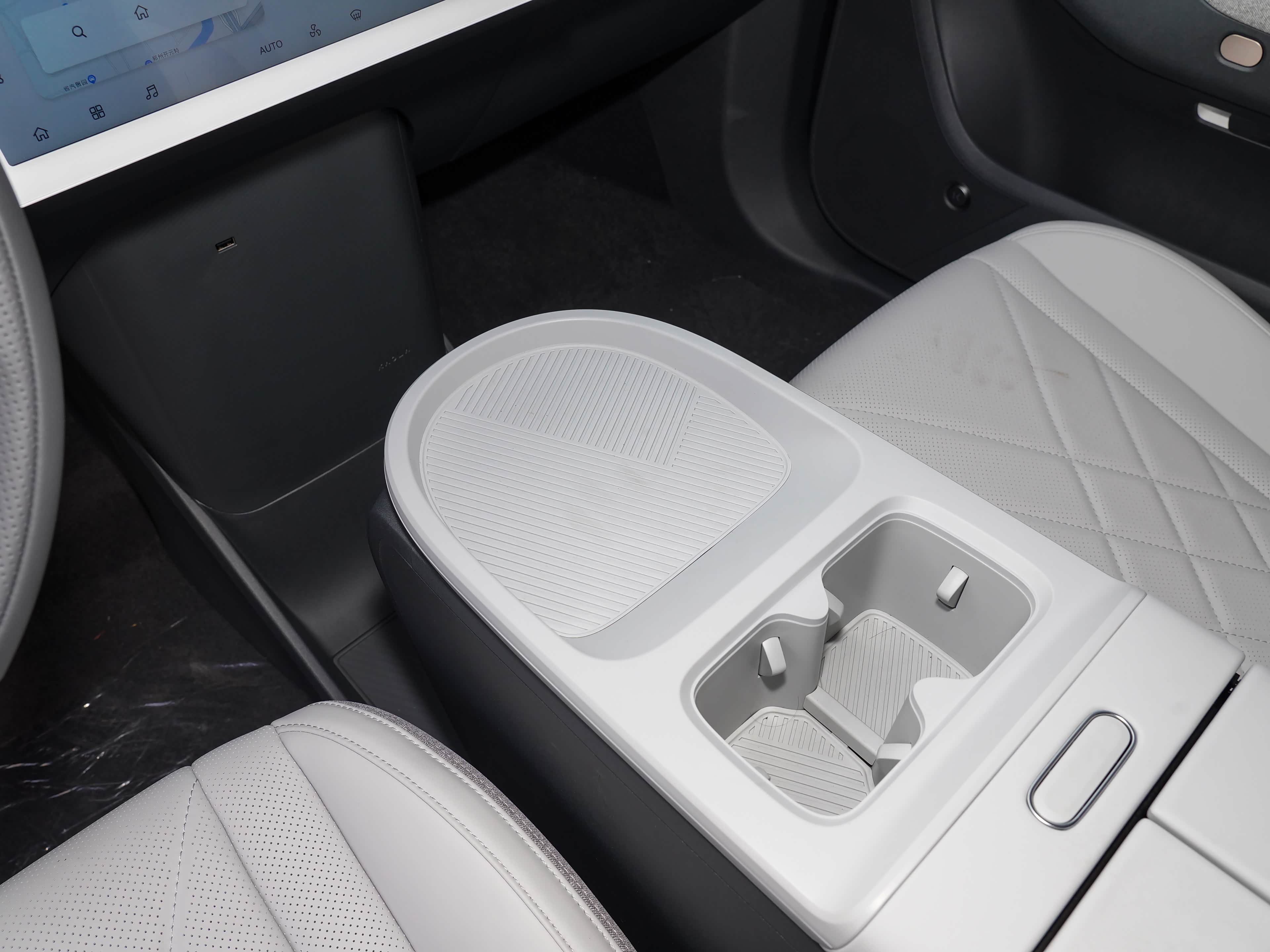

    Wireless charging ● First row

    Seats

    Standard Optional
    Item Value
    Seat Material ● Synthetic Leather

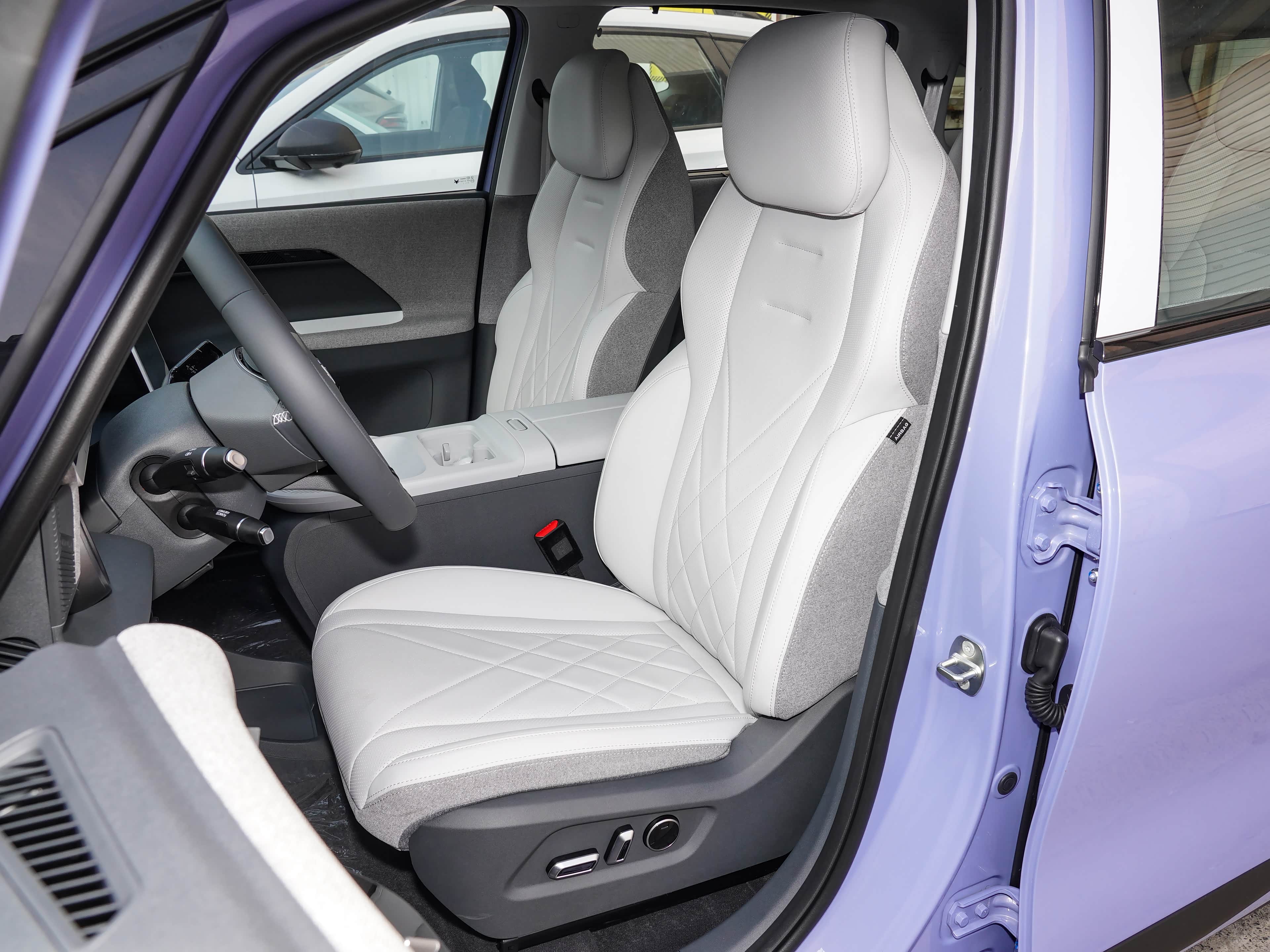

    Driver's seat adjustable ● Slide ● recline ● height(2-way) ● lumbar(4-way)
    Front passager seat adjustable ● Slide ● recline
    (D+ P)electric seats Driver● / Passenger●
    Front Seat Features ● Heated(driver seat) ● Ventilation(driver seat) ● Head restraint speaker (driving position only)

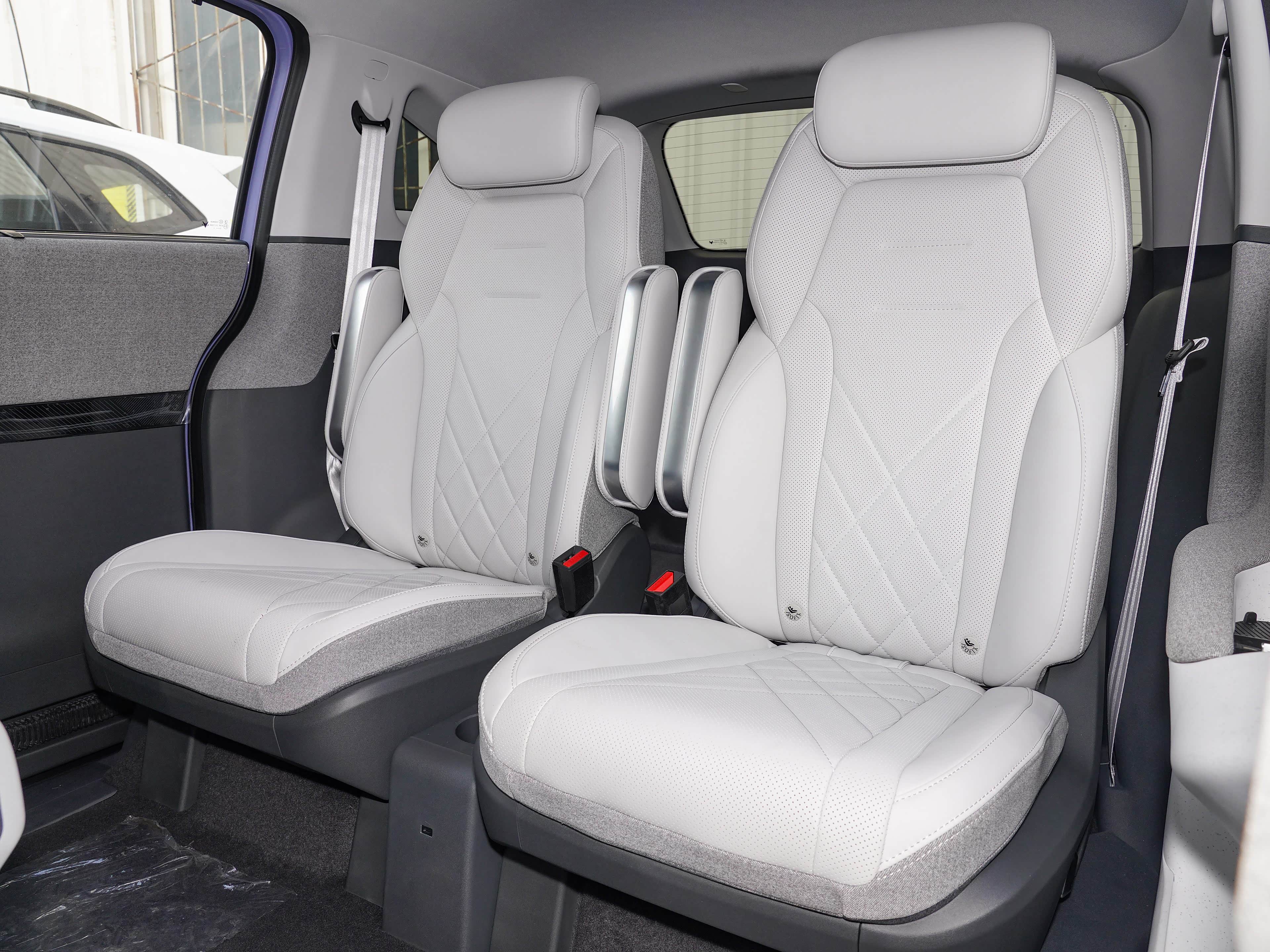

    2nd-row captain’s chairs ●
    2nd-row Seat adjustable ● recline
    Power 2nd Row Passenger Seats ●
    2nd-row Seat Features ● Heated ● Ventilation
    Boss button for the front passenger seat -
    Power seat with memory ● Driver ● Passenger Driver ● 2nd-row
    Foldable 2rd Row -

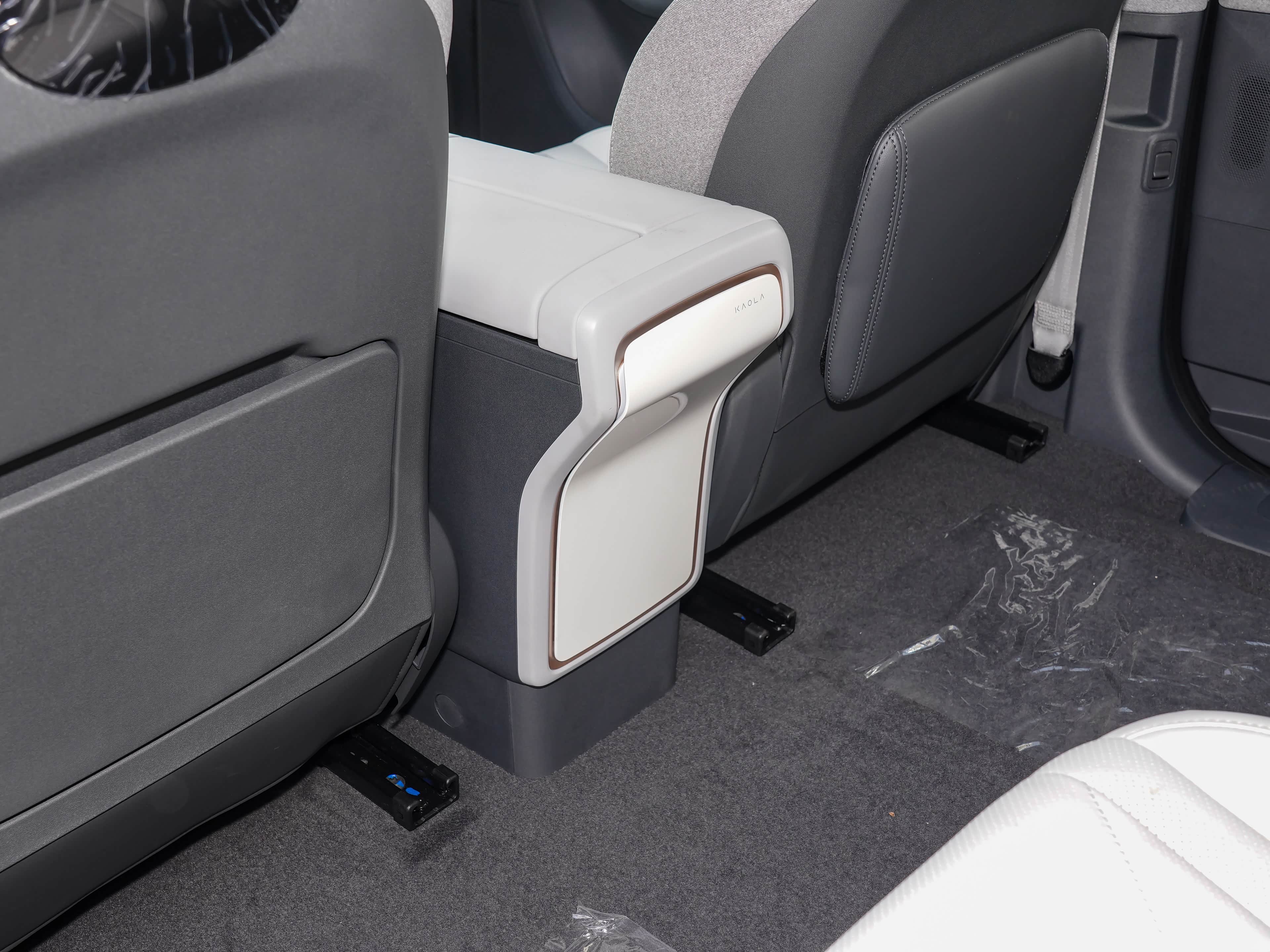

    Front/Rear center armrest Front ●/Rear ●
    Rear cupholders ●

    Audio&Uconnect&Multimedia

    Standard Optional
    Item Value
    GPS Navigation ●
    MB Navigation ●
    Roadside Assistance ●

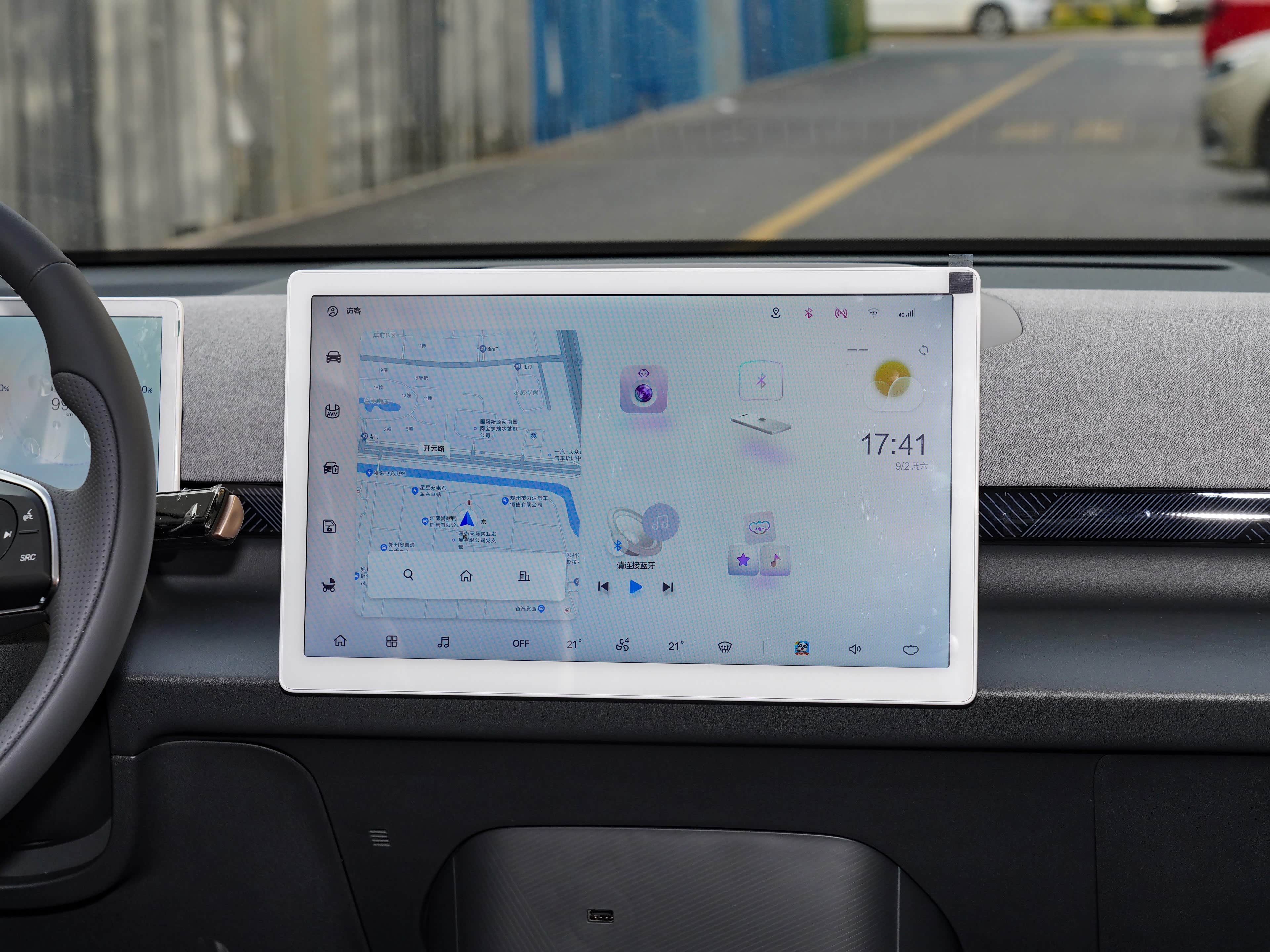

    Central Multimedia Display Type ● Touchscreen
    Central Multimedia Display Size ●146 inch.
    Bluetooth/Telephone ●
    CarPlay/Android Auto ● CarPlay/Android Auto
    OTA ●
    USB/Type-C ● 1 First row/1 2nd-row
    Internet of Vehicles ●
    Rear control multimedia ●
    Voice control ● Multi-media system ● Navigation ● Telephone ● A/C ● Windows
    220V/230V power supply ●
    Interior Charging ●USB
    Sound System -
    Number of speakers ●8Speakers

    Lighting Systems

    Standard Optional
    Item Value
    Low Beam ●LED
    High Beam ●LED
    LED Daytime Running Lights (DRL) ●
    Automatic Headlights ●
    Adaptive Highbeam Assist ●
    Front fog lights -
    Headlight Leveling ●
    Delay-off headlights ●
    Ambient Lighting ● Multi-color

    Glass&Mirrors

    Standard Optional
    Item Value
    Front/Rear Power windows Front ●/Rear ●
    Electric windows with one-touch open/close ● Whole vehicle
    Windows anti-trap ●
    Exterior mirrors ● Electrically adjustable ● Power-folding ● Heated
    Interior rearview mirror ● Manually dimming
    Rear side window sunblinds ● Manual
    Vanity mirrors ● Driver driving illuminated
    Rear wash wiper -
    Sensing windshield wipers ● Rain sensing

    Climate Control

    Standard Optional
    Item Value
    A/C Contral ● Automatic
    Independent Rear Controls -
    Rear air conditioning vents ●
    Separate Temperature ●
    Cooler box ●
    Cabin-air purification system -
    PM2.5 monitoring ●

    Convenience&Intelligent Driving

    Standard Optional
    Item Value
    Blind Spot Assist ●
    Lane Departure Alert ●
    Lane Keeping Assist ●
    Active Brake Assist ●
    Remote Engine Start ●

    Sensing Units/Data

    Standard Optional
    Item Value
    Number of camera ● 5
    Ultrasonic radar ●12One
    Millimeter wave radar ● 3
